3.1 Basic Modul Reamer (RMENU)
Galerie
Work Piece: 1. Cylinder 2. Taper Face: Plane without cutting edge Milling end face Cutting Edge Combination: right helix/right cut left helix/left cut right helix/left cut left helix/right cut Devision: equal unequal (free division between all teeth) Preparation: Separation Profile roughing Profile finishing Production / Regrinding Production in several infeeds Main Fluting: Workpiece with pairs of different fluting geometries Periphery Like end mills Pos. 1. Heel: Like end mills Pos. 1. Chamfer: Linear relief: 1./2./3. relief angle Radial relief: transverse/longitudinal 2 nd Chamfer: Optional: 2 nd chamfer
Galerie
Tool: 3030017 Basic Modul
Tool: 3040017 Basic Modul

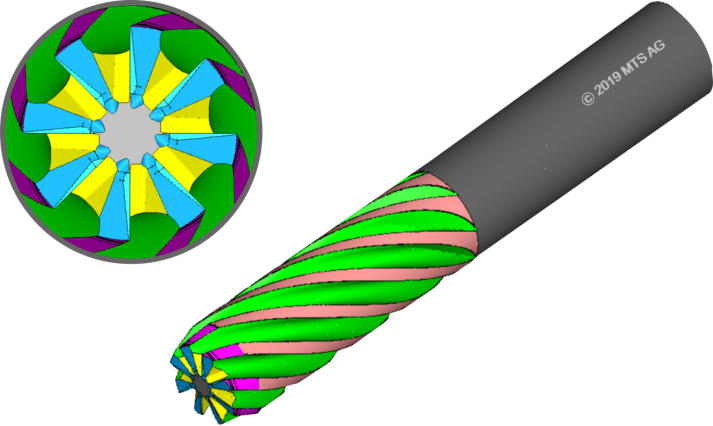

Tool: 3010017 Basi Modul „Reamer 8 Cuts“
Tool: 3020017 Basic Modul
