WELCOME “tool-kit PROFESSIONAL ... the software solution for experts”
17.1 Flute Construktion / Profil Wheel Calculation

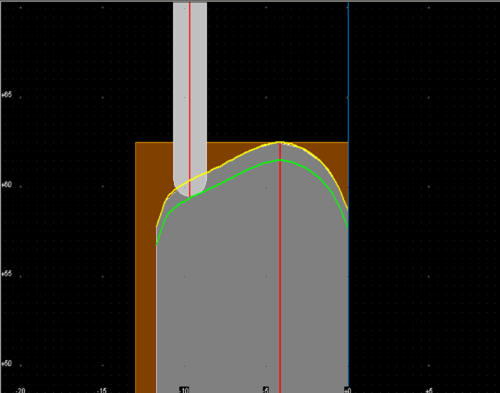

Construction of Flute Profile: Construction by integr. CAD Calculation of wheel-profile Calculation of grinding track Intersection simulation Output of wheel discription

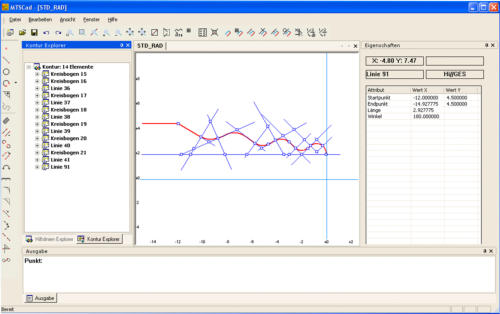

CAD-Program specilized to the usage of tool-construction including interface to the grinding-modules.
19.1 Dressing
18.1 CAD Modul
20.1 Open Procedure
Wheel dressing: Input of dressing parameter within´machine world Calculation of dressing cycle driven by given wheel profile (Pos. 19)
Construction and generating of selfmade additional operations. Integration at any operation-position Graphical construction of open procedures Up to 10 different additional operations per modul Import/Export by global database Inserting at any position within machining order Seperate wheel and technology to each open procedure Movement- and intersection-simulations
21.1 Collison Control
23.1 Measurement-Cycles

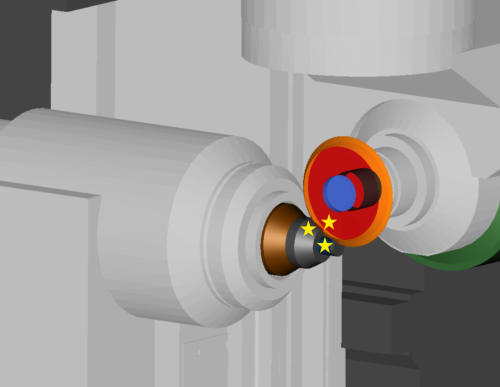

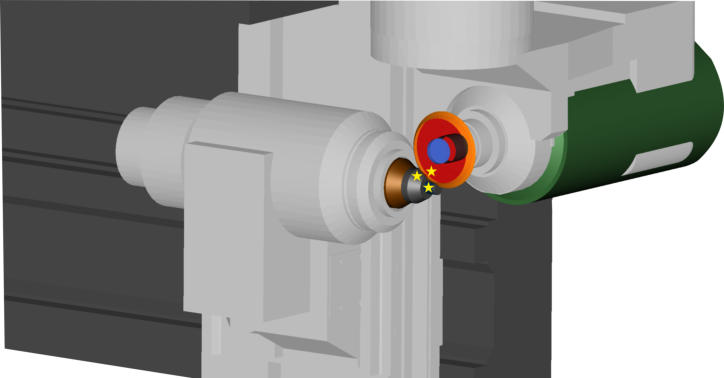

Functions: NC_start without collision-control NC_start with collision-control and auto-stop at first collision. NC_start with collision-control and collision protocoll of all situations NC_simulation without collision display NC_simulation with collision display Extended CNC-Generator: Collision-control: Yes / No Mode-selection: „Stop at first collision“ / “All collisions“ Mode „Stop at first collision“: The modul stops the calculation of the CNC-code by recognition of the 1st collision and shows these graphically on the scope. Mode „All collisions“: First the CNC code will be calculated completely. Subsequently we will have a listing of all collision situations. In the following these can be individually plotted and examined. Administration of the collision objects (Setup): 4 object lists: Basical objects, tool-objects, clamping- and spindle-objects. The list administration takes place in each case by inserting, copying, renaming or deleting. The selection of the objects which can be considered concerning the collision takes place via activating in the object lists Collision calculation: Examinating the penetration of all activated objects, as well as the active grinding wheel outside of the workpiece. Generating the collision protocol

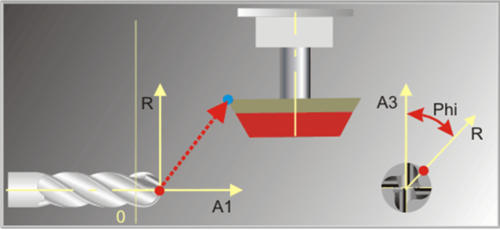

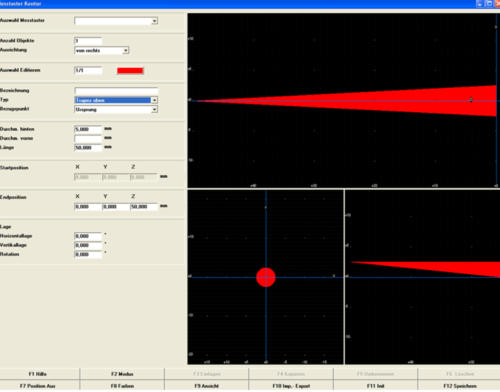

Measurement-Cycles for 3D-probing-system Length Tooth positioning Helix lead (cylindrical, conical) Diameter (cylindriical, conical) Teeth-indexing
24.1 Measurement-Machine

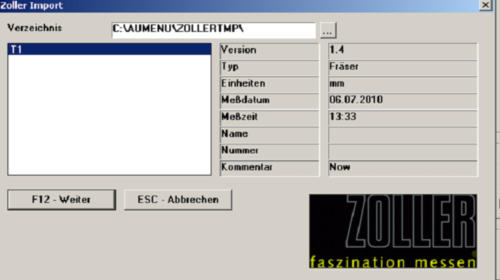

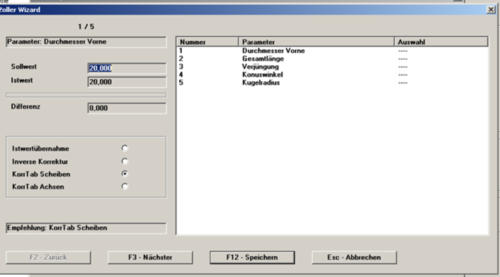

Interface within tool-kit PROFESSIONAL to a measurement-maschine (Exp. Zoller genius 3). Exchange of geometry data between MTS software and a measuring machine. Measurement of workpiece data and wheel geometry Reading back the measured datas Decision for further processing Measurement-data will be read and analysed by the error-handling- procedure. The generated correction-data will be used in ordert to come to correct must values at next grinding step. Correction Options: Correction on the wheel data: Reasonable corrections f.e. at diameter, rake-angle and wheel-distance. Using the operation-specifical correction table: Corrections at machine-data or wheel-data. Correction of tool parameter: Correction in inverse direction to the actual value and setpoint.
“tool-kit PROFESSIONAL ... the software solution for experts
