4.1 Basci Modul Side Milling Cutter (NMENU)
Galerie
Workpiece: Cylinder Trapecoid Prisma Half Angle Full Radius End Faces: Plan Face Chamfer Corner Radius Teeth: Standard teeth Staggered teeth Staggered/skipping teeth Production / Regrinding Production by different infeed in several steps Regrinding with calculation of removal length, periphery and rake. Regrinding, finishing with different wheels Main Fluting Meas. definition: Point-/ normal cut Grind direction: Forward / backward Optional spark out grinding Periphery: Linear relief: 1st/ 2nd /3rd relief angle Radial relief: Cross-/ longitudinal Grind direction: Forward / backward Optional spark out grinding Heel: Grind proc.: Crosswise-/ longitudinal Production by different infeed (several steps) Grind direction: Forward / backward Optional spark out grinding Face Relief: like end mills Gashing, front/rear: like end mills Chamfer front/rear: like end mills
Galerie
Tool: 4030017 Basic Modul
Tool 4040017 Basic Modul

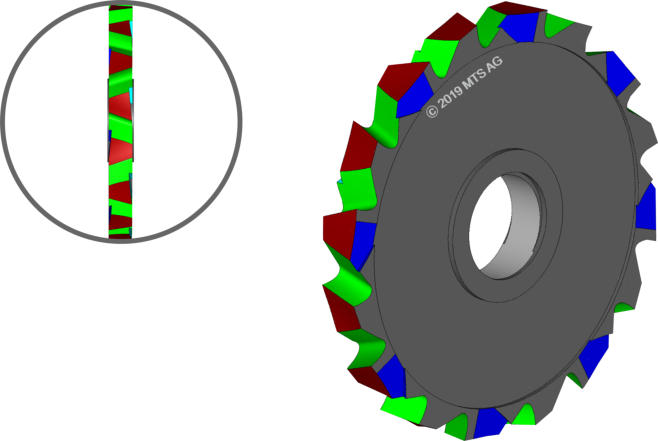

Tool: 4010017 „cross-cut side milling Cutterr“ Basic Modul
Tool: 4020017 Basic Modul
