Workpiece: Tools with free selectable profile Profile: CAD-System for profile construction Profile Element: Straight line Edge Convex / concave radius Chamfer Free selectable sequence of the profile elements Preparation: Profile roughing Profile finishing Clamping: Frontal Periphery: Axial part of relief Radial part of relief Free selectable grinding position per element Main Fluting: Straight fluting Sec. gashing

MODUL TBURINS / LATHE TOOLS

VORLAGE
13.1 Basic Modul Burins / Lathe Tools (IMENU)
Galerie
Workpiece: Tools with free selectable profile Profile: CAD-System for profile construction Profile Element: Straight line Edge Convex / concave radius Chamfer Free selectable sequence of the profile elements Preparation: Profile roughing Profile finishing Clamping: Frontal Periphery: Axial part of relief Radial part of relief Free selectable grinding position per element Main Fluting: Straight fluting Sec. gashing

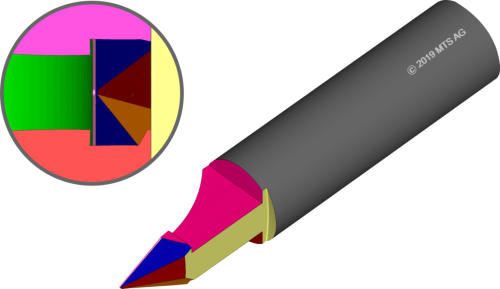

Tool: 13010017 „Burin“ Basic Modul + 20.1 Basic Moduln Open Procedure

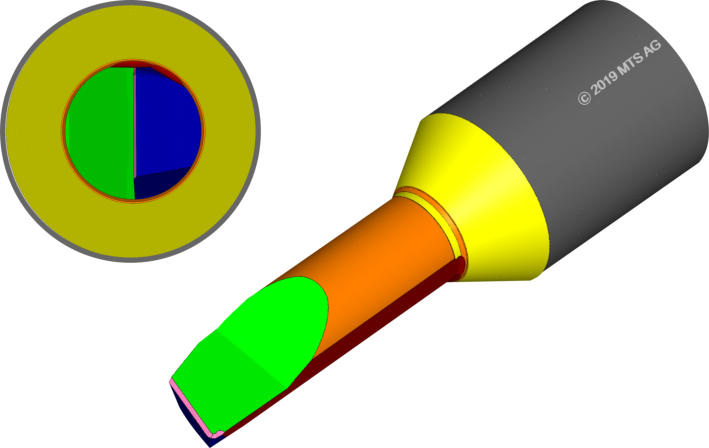

Werkzeug: 13020017 „ Basic Modul
Tool: 13030017 Basic Modul
Tool: 13040017 Basic Modul
