6.1 Basic Modul Drills (BMENU)
Optionen
Work Piece: 2 or 3 teeth 1 – 5 Steps Cutting Edge Combination: right helix/right cut left helix/left cut Produktion / Regrinding: Production by different infeed (several steps) Regrinding with calculation of removal ength, periphery and rake. Regrinding, finishing with different wheels Preparation: Separation Profile roughing Profile finishing Point: Standard Split point 2-facet point 4-facet point 6-facet point Delta – point M – point Kevlar – point Centring point Milling end face 2 nd Chamfer: Optional: 2 nd chamfer 1 st Web Thinning: Correction of main cutting edge Correction of chisel edge S-web thinning (incl. Sumitomo like) Free constructed notchings / corrections 2 nd Web Thinning: Correction of main cutting edge Correction of chisel edge Main Fluting: Meas. definition: Point-/ normal cut Grind. direction: Forward / backward Optional spark out grinding Separated fluting per step Periphery: Radial grinding / Round grinding Transverse/longitudinal positioning Linear relief: 1./2. relief angle Steps: Standard step (axial/radial relief angle) Step aperture angle: 45 - 200° Linear relief step (aperture angle 170°) Chip Breaker: 1 or 2 chip breakers per tooth Simulation Simulation of intersection at all operations Wheel/workpiece-simulation Machining simulation Production from standard- to step drill: Special measurement and calculation program Chamfering at cutting edge of S- and RGR-Web Thinning Chamfering at cutting edge of flute: Chamfer Angle Chamfer Width

6.2 Subland Drills

6.3 S-Point

6.4 Woodworking tools

Galerie

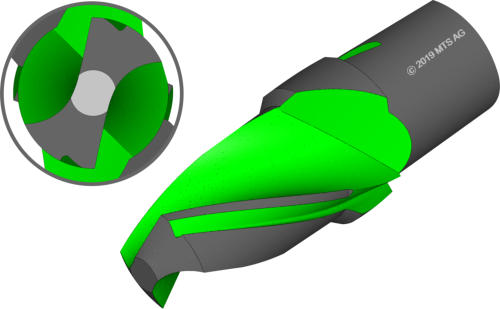

Specification according to Standard-/Stepping Drills Secondary Fluting Defined rotation against main fluting Tool: 6010017 „Subland drill“
Tool: 6050017 „Radius drill (Gühring KG)“ Exclusive Gühring KG

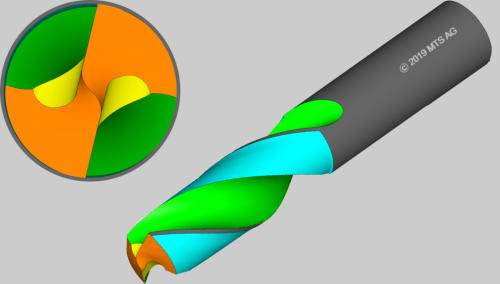

Tool: 6060017 Basic modul

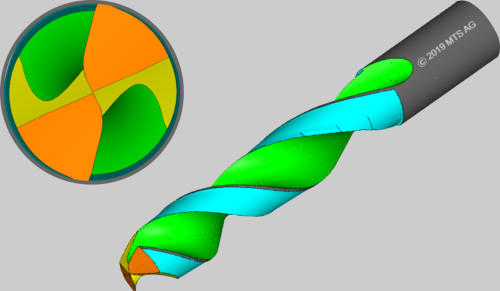

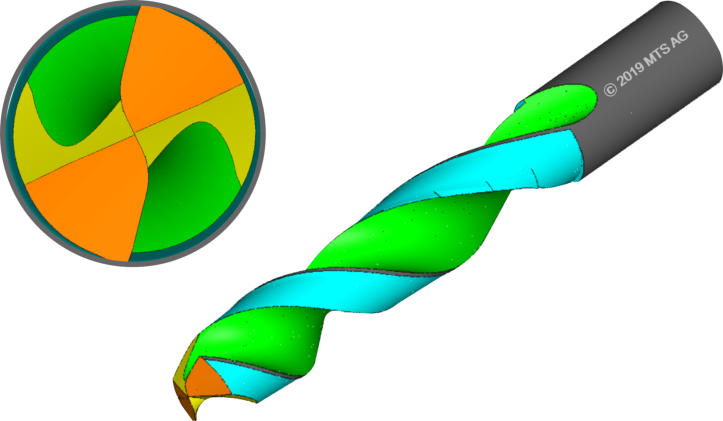

Tool: 6070017 Basismodule
Tool: 6080017 „Dowel drill“ Basic modul + option woodworking tools

6.5 MTS-GIGA-Drill

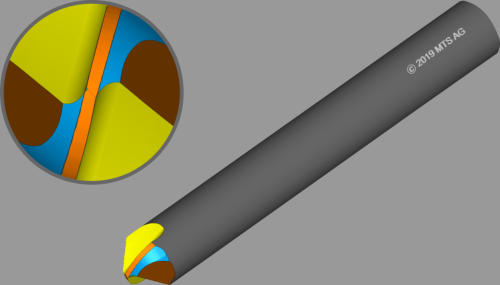

S-Point: 2- and 3-teeth Tool 6020017 „Drill S-Point“

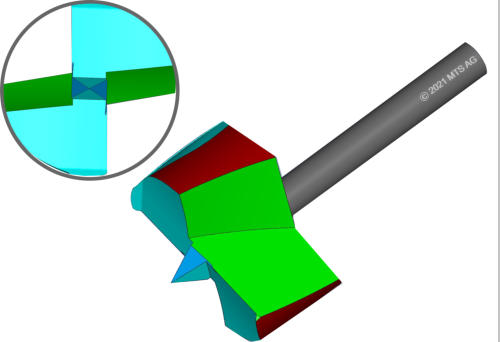

Drill for woodworking: Pin-drill Forstner-Drill Tool: 6030017
Special point with 4 teeth / flutes: There are 4 main cutting edges, each including a 4-facet-points and a 4- facet-chamfer, splitted into two groups. The main group is constructed by a typical 4-facet-point while the secondary group is done by shortened teeth. (like a end mill tool with 2-to-center-geometry). The two-stepped Giga-Drill is like a typical subland-drill-geometry. Tool 6040017 „GIGA-Drill“
“tool-kit PROFESSIONAL ... the software solution for experts
CONTACT info(at)mtsag.net Phone: +41 61 81 59 130 whatsapp: +41 78 62 77 560 Fax: +41 61 81 59 139
ADRESS Rheinstrasse 81 CH-4133 Pratteln Switzerland

Copyright © 2001- 2021 MTS AG

Made with MAGIX

MODUL DRILLS

VORLAGE
Galerie
Tool: 6050017 „Radiusbohrer (Gühring KG)“ Exclusive Gühring KG
Tool: 6060017 Basic Modul
Tool: 6070017 Basic modul
Tool 6080017 Basic modul + option woodworking tools
1.1 Basic Modul Drills (BMENU)
Optionen

6.2 Subland Drills

Specification according to Standard- /Stepping Drills Secondary Fluting Defined rotation against main fluting Tool: 6010017 „Subland drill“

6.3 S-Point

6.4 Woodworking Tools

S-Point: 2- and 3-teeth Werkzeug: 6020017 6.1 Basic Drills + 6.3 S-Point
Drills for woodworking: Pin-Drills Forstner-Drill Tool: 6030017

6.5 MTS-GIGA-Drill

Special point with 4 teeth / flutes: There are 4 main cutting edges, each including a 4-facet-points and a 4-facet-chamfer, splitted into two groups. The main group is constructed by a typical 4-facet- point while the secondary group is done by shortened teeth. (like a end mill tool with 2-to-center-geometry). The two-stepped Giga-Drill is like a typical subland-drill-geometry. Tool: 6040017 6.1 Basic Drillsr + 6.5 GIGA
Work Piece: 2 or 3 teeth 1 – 5 Steps Cutting Edge Combination: right helix/right cut left helix/left cut Produktion / Regrinding: Production by different infeed (several steps) Regrinding with calculation of removal ength, periphery and rake. Regrinding, finishing with different wheels Preparation: Separation Profile roughing Profile finishing Point: Standard Split point 2-facet point 4-facet point 6-facet point Delta – point M – point Kevlar – point Centring point Milling end face 2 nd Chamfer: Optional: 2 nd chamfer 1 st Web Thinning: Correction of main cutting edge Correction of chisel edge S-web thinning (incl. Sumitomo like) Free constructed notchings / corrections 2 nd Web Thinning: Correction of main cutting edge Correction of chisel edge Main Fluting: Meas. definition: Point-/ normal cut Grind. direction: Forward / backward Optional spark out grinding Separated fluting per step Periphery: Radial grinding / Round grinding Transverse/longitudinal positioning Linear relief: 1./2. relief angle Steps: Standard step (axial/radial relief angle) Step aperture angle: 45 - 200° Linear relief step (aperture angle 170°) Chip Breaker: 1 or 2 chip breakers per tooth Simulation Simulation of intersection at all operations Wheel/workpiece-simulation Machining simulation Production from standard- to step drill: Special measurement and calculation program Chamfering at cutting edge of S- and RGR-Web Thinning Chamfering at cutting edge of flute: Chamfer Angle Chamfer Width
